Animation Glossary

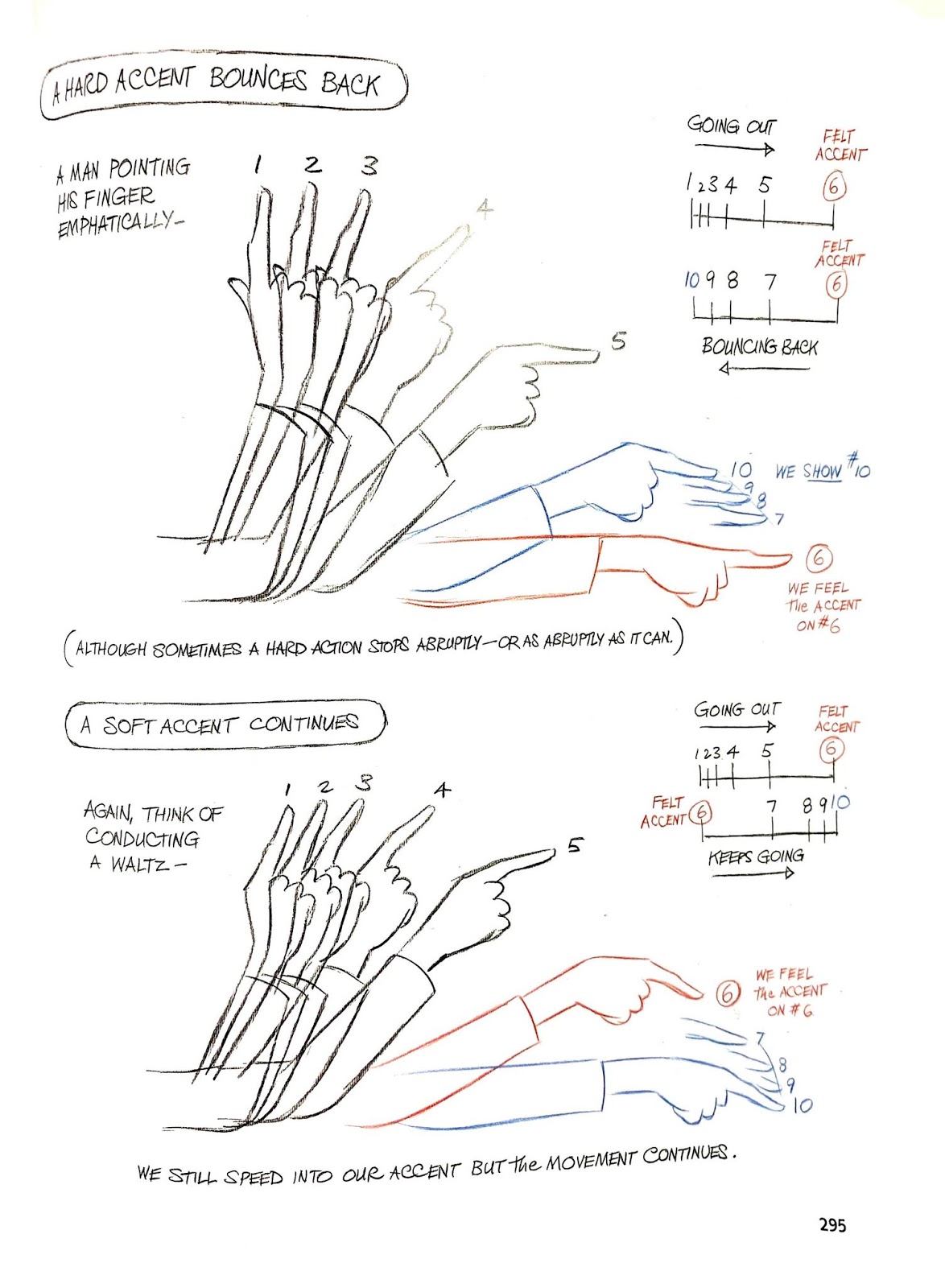

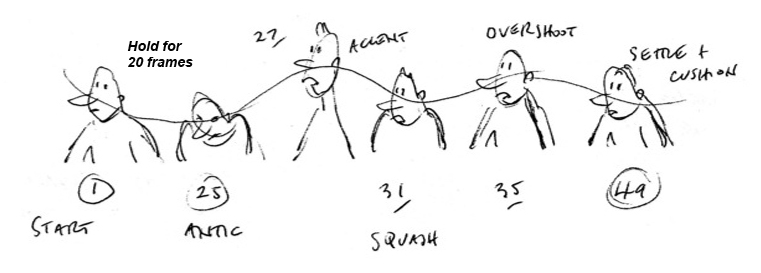

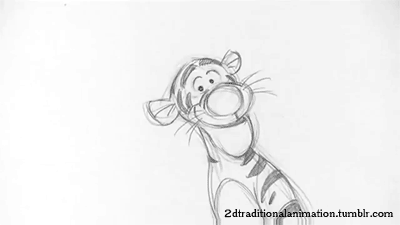

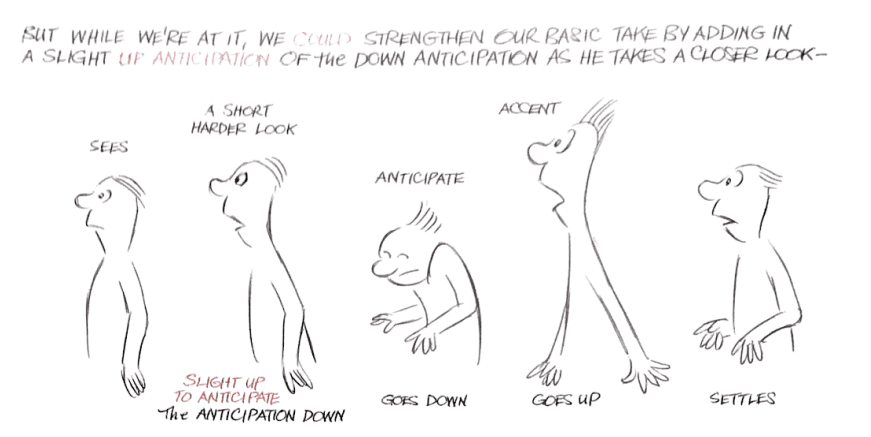

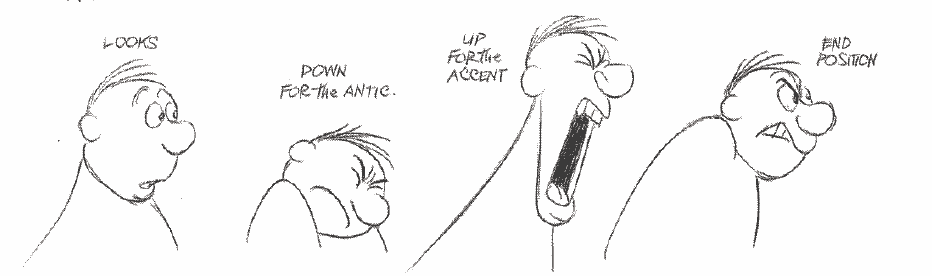

Definition: Emphasized moments in an animation that highlight specific expressions or body movements, making them the most prominent parts of the performance. Accents help in drawing the audience’s attention to key elements of a scene.
Usage: Accents are used to add emphasis to specific moments in a performance, ensuring that the most critical parts of the animation stand out to the viewer.
Example: When a character delivers a line with anger, their eyebrows might sharply lower, and their body may tense up momentarily to accentuate the emotion.

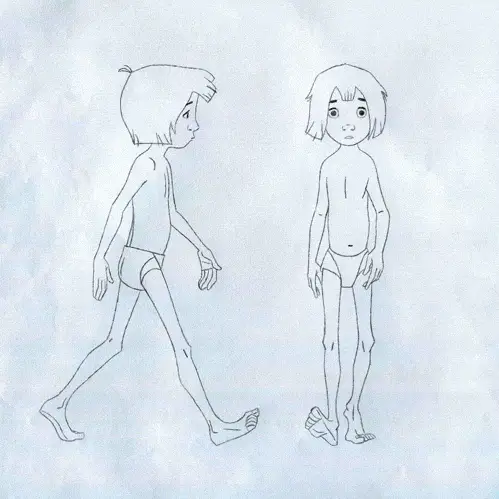

Definition: The process of creating the illusion of movement by displaying a series of individual frames or images in rapid succession. It involves various techniques, such as 2D animation, 3D animation, and stop-motion.
Usage: Animation is used in movies, games, and other visual media to bring characters and objects to life through movement.
Example: In 3D animation, an animator might manipulate a character rig frame by frame to simulate the motion of walking.
Definition: A feature in animation software that allows animators to create multiple layers of animation for different elements or movements. For instance, the primary movement can be on the base animation layer, while secondary movements or subtle details are on separate layers.
Usage: Layers allow animators to separately animate different aspects of a character, such as body movement on one layer and facial expressions on another, providing more control and flexibility.
Example: An animator might use a separate layer to animate a character’s breathing on top of the base layer, which controls the character’s main body movement.
Definition: A preparatory action in animation that sets up a primary action, usually moving in the opposite direction to the main movement. It helps make the main action clearer and more impactful.
Usage: Anticipation helps to guide the audience’s eye and makes the main action feel more natural and believable.
Example: Before a character jumps, they bend their knees and squat down, creating a moment of anticipation that makes the jump feel more powerful.
Definition: The natural, smooth paths that animate objects and characters follow, creating more organic and lifelike movements. Correctly utilizing arcs in animation results in fluid and dynamic motion.
Usage: Using arcs in animation makes movements appear more natural and less robotic, as most organic movements follow curved trajectories.
Example: When a character throws a ball, the hand follows an arcing path, making the throw look more realistic.
Definition: The aesthetic quality of a character or scene that makes it engaging and enjoyable to watch. Appeal encompasses design, movement, and personality, making the animation resonate with audiences.
Usage: Appeal is crucial in character design and animation to ensure that characters are relatable, interesting, and visually pleasing.
Example: The character designs in Pixar films often have exaggerated yet appealing features, like large eyes and expressive faces, making them instantly likable.
Definition: The ratio of width to height in a frame or screen, which determines the visual format of an animation. Common aspect ratios include 16:9 for widescreen and 4:3 for standard television.
Usage: Choosing the correct aspect ratio is essential for framing scenes appropriately and ensuring that the animation fits the intended display format.
Example: A 16:9 aspect ratio is commonly used in film and television to provide a widescreen experience, offering a broader view of the scene.
Definition: A preliminary version of an animation, often created using a sequence of storyboard images timed with audio, to give a rough sense of how the final animation will look and feel.
Usage: Animatics are used in the pre-production phase to visualize the timing, pacing, and overall flow of a scene before committing to full animation.
Example: Before animating a complex action sequence, an animatic is created to map out the key poses and timing of the movements.
Definition: The step-by-step workflow followed in animation production, from pre-production (storyboarding, concept design) to production (modeling, animating) and post-production (rendering, editing).
Usage: A well-structured animation pipeline helps streamline the production process, ensuring that each stage is completed efficiently and on schedule.
Example: The animation pipeline for a 3D animated film includes stages like modeling, rigging, animating, lighting, and rendering.
Definition: A graphical representation of the changes in a property (e.g., position, rotation) over time in animation software, allowing animators to fine-tune the movement and timing of an object or character.
Usage: Animation curves are adjusted in software like Maya or Blender to control the speed and smoothness of an animation’s movement.
Example: By modifying the animation curve in the Graph Editor, an animator can create a more natural ease-in and ease-out effect for a character’s arm movement.
Definition: The opposite of “Twinning,” where elements such as poses, expressions, or movements are intentionally made non-identical to create a more interesting and lifelike appearance.
Usage: Asymmetry is used to make characters appear more dynamic and natural, as perfect symmetry can make poses look stiff and unnatural.
Example: When posing a character, one shoulder might be raised slightly higher than the other to add realism and interest to the stance.
Definition: A technique used to smooth jagged edges in digital images by blending pixel colors along boundaries, making lines and shapes appear cleaner.
Usage: Anti-aliasing is applied during rendering or in real-time viewports to improve the visual quality of animated characters and environments.
Example: When rendering a character with curved outlines, anti-aliasing helps prevent the edges from looking pixelated or harsh.
Definition: A shading technique that simulates soft shadows in areas where objects are close together, enhancing the perception of depth and realism.
Usage: Ambient occlusion is used in rendering to add subtle shadowing in creases, corners, and contact areas, making the animation look more grounded and natural.
Example: In a character’s face, ambient occlusion darkens areas like around the nose, under the eyebrows, and in the corners of the mouth to give a more realistic look.
Definition: The initial phase of animation where the main key poses are established to convey the overall idea and timing of the movement. Blocking lays the foundation for the scene before adding finer details.
Usage: Blocking is used to create a rough outline of the animation, allowing animators to focus on the primary movements before refining the details.
Example: In blocking, an animator will place the character in key poses, like a crouch before a jump, the peak of the jump, and the landing.
Definition: Bending a joint beyond its realistic range of motion to exaggerate flexibility and create appealing arcs. It’s often used to enhance the fluidity of a movement, especially in cartoony animation.
Usage: Breaking joints is used in exaggerated animations to make movements feel more dynamic and less stiff.
Example: When a character throws a punch in a cartoony style, the elbow might bend backward slightly before snapping forward to add extra force and drama to the motion.
Definition: The natural effect of an object or character responding to gravity or impact forces, often seen in ball bounces or character jumps.
Usage: Understanding bounce is essential for animating actions that involve contact with surfaces, ensuring that the object’s movement appears realistic and follows the laws of physics.
Example: When animating a bouncing ball, it squashes upon impact with the ground and then stretches as it rebounds, creating a believable bounce.
Definition: A mathematical curve commonly used in animation to define motion paths and transitions between keyframes for smoother animations.
Usage: Bezier curves allow animators to adjust the acceleration and deceleration of movements, creating more natural and fluid transitions.
Example: In 3D software, animators use Bezier curves to create smooth easing in and out of a character’s hand movement, giving it a more natural flow.
Definition: A character with two legs, such as a human or a bird, whose motion is described as bipedal movement.
Usage: Animating a bi-ped requires understanding the mechanics of two-legged movement, such as walking, running, and jumping.
Example: When animating a human character’s walk cycle, attention must be given to the coordination of the arms and legs to achieve a realistic bipedal motion.
Definition: A technique used in 3D animation where a character is rigged with a skeleton, allowing it to be animated through the manipulation of bones.
Usage: Bone animation is essential for creating realistic movements in characters, enabling the animator to pose and animate each part of the body.
Example: In a 3D character rig, bones are placed in the skeleton to control the limbs, spine, and head, making it possible to animate complex actions like dancing or fighting.
Definition: The pose or keyframe that describes how an object or character moves from one key pose to the next, often dictating the spacing, timing, and arc of the action.
Usage: Breakdowns add nuance to the animation by defining the path and timing between key poses, ensuring a fluid and dynamic movement.
Example: In a waving motion, the breakdown might show the arm halfway through its arc, helping to define the smoothness and speed of the wave.
Definition: Refers to how the different parts of a character’s body move and interact with forces like gravity and momentum, creating a believable performance.
Usage: Understanding body dynamics is crucial for animating realistic and expressive movements, as it involves the interplay of weight, balance, and inertia.
Example: When a character abruptly stops running, their upper body might lean forward due to the momentum, and their arms may swing to maintain balance.
Definition: Non-verbal communication expressed through a character’s posture, gestures, and movements, conveying their emotions and intentions.
Usage: Body language is used in animation to express a character’s inner thoughts and feelings, often enhancing the storytelling without the need for dialogue.
Example: A character slumping their shoulders and avoiding eye contact can convey sadness or insecurity.
Definition: Also known as easing, this refers to the gradual acceleration or deceleration of a movement in animation. Ease In means slowing into a pose, while Ease Out means slowing out of a pose, adding more naturalness to the motion.
Usage: Cushioning is used to avoid sudden, mechanical movements, giving a more organic feel to the animation.
Example: When a car comes to a stop, it slows down gradually (eases out) instead of stopping abruptly, making the animation look smoother and more realistic.
Definition: The degree to which an action or pose is clear and easily understandable to the audience. Clarity ensures that the intentions behind the character’s actions are effectively communicated.
Usage: Clarity is used to make sure that the audience can easily follow the story and emotions of the characters without confusion.
Example: A character’s pose with a clear silhouette, such as a hero standing with legs apart and hands on hips, conveys confidence and strength to the viewer.
Definition: An animation that repeats seamlessly, often used for actions like walking, running, or idle states. Proper looping requires that the first and last key poses be identical.
Usage: Cycles are used to create continuous movements like walk cycles or background elements that repeat without interruption.
Example: A walk cycle for a character will repeat the motion of steps, creating the illusion of continuous walking.
Definition: In 3D animation software, a relationship between two objects where one object controls the movement, rotation, or scale of another.
Usage: Constraints are used to make objects follow or stick to other objects, simplifying the animation process.
Example: A constraint can be used to make a character’s hand grip a moving object, such as a sword, ensuring that the hand follows the object’s movement.
Definition: A pose in which the weight is shifted onto one leg, resulting in a tilt of the hips, shoulders, and spine to create a dynamic and balanced appearance.
Usage: Contrapposto is used to give characters a more relaxed and natural stance, enhancing the visual appeal of the pose.
Example: A character standing with one hip pushed out and shoulders tilted in the opposite direction creates a dynamic and lifelike pose.
Definition: In traditional 2D animation, this is the process of refining rough sketches into clean, polished linework. In 3D animation, it involves refining curves and removing any “pops” or glitches in the motion.
Usage: Clean-up is used to finalize the animation, ensuring that the movements are smooth and the visuals are polished.
Example: After rough animating a character, clean-up involves going over the keyframes to ensure the lines are smooth and consistent, removing any unintended jitter or noise.
Definition: Refers to the moment when a part of the character or an object makes contact with another surface or object.
Usage: Contact is crucial in actions like walking or touching objects, as it defines the interaction between characters and their environment.
Example: In a walk cycle, the contact pose is when the character’s foot first touches the ground, marking the start of a new step.
Definition: Short for “controllers,” these are the controls on a character rig used for animating.
Usage: Cons are used to manipulate different parts of a character’s body, such as moving limbs, facial features, or other components.
Example: In a 3D rig, the animator uses cons to pose the character’s hands, feet, and head, adjusting the position and rotation to create the desired motion.
Definition: A blocking method where poses are duplicated over a range of frames to create holds, using flat tangents to maintain the pose before transitioning to the next key pose.
Usage: Copied pairs are used during the blocking phase to create clear and defined poses, allowing for easy timing adjustments.
Example: In blocking a character’s dialogue, the animator uses copied pairs to hold facial expressions at specific beats for clarity.
Definition: Ensuring that all elements, such as character positions, props, and movements, remain consistent across different shots and scenes in animation, maintaining the illusion of a continuous sequence.
Usage: Continuity is used to ensure that the audience is not distracted by discrepancies in the animation, preserving the narrative flow.
Example: If a character picks up an object in one shot, they should still be holding it in the following shots to maintain continuity.
Definition: The process of gathering reference materials and ideas that will help bring the director’s and production’s vision to life.
Usage: Casting is used in pre-production to define the look, feel, and personality of characters and scenes.
Example: An animator might use video reference of an actor performing the character’s actions to capture the nuances of the performance.
Definition: The addition of subtle imperfections or variations in an animation to avoid a too “clean” or mechanical look. It adds realism and life to the motion.
Usage: Dirt is used to make animations feel more organic by incorporating tiny inconsistencies that occur in natural motion.
Example: When animating a character’s walk, adding slight shifts in the head and shoulders prevents the motion from looking too perfect and robotic.
Definition: A traditional animation tool used to plan out the timing of keyframes, in-betweens, and layers, often used for synchronizing animation with audio or dialogue.
Usage: A dope sheet is used to organize and manage the timing of an animation, ensuring that all elements align properly throughout the scene.
Example: An animator uses a dope sheet to map out the exact frames where the character’s mouth shapes match the dialogue.
Definition: An unwanted, subtle movement in an animation, typically occurring when a part of a character moves unintentionally, such as a hand sliding when it should remain planted.
Usage: Drifting is minimized during the polishing phase by ensuring that all movements are intentional and controlled.
Example: To avoid drifting, an animator will carefully check that a character’s planted foot stays in place during a walk cycle.
Definition: The principle that describes how parts of a character or object will follow the leading action, creating a delay or “dragging” effect that contributes to the overall fluidity and realism of the movement.
Usage: Drag is used to create a sense of weight and inertia, making the animation appear more dynamic and lifelike.
Example: When a character with long hair quickly turns their head, the hair will drag behind before catching up to the head’s movement.
Definition: The study of forces and motion in animation, often used to simulate physical behaviors like gravity, collisions, and friction.
Usage: Dynamics are used in both character and effects animation to add realistic physical interactions between elements.
Example: In a fight scene, dynamics are used to animate the impact of punches, where the character’s body reacts naturally to the force.
Definition: The gradual acceleration or deceleration of a movement. “Ease In” slows down into a pose, and “Ease Out” speeds up out of a pose, creating more natural and believable motion.
Usage: Easing is used to add subtlety and naturalness to movements, preventing them from looking abrupt or mechanical.
Example: A swinging pendulum eases out of the highest point (slowly starts) and eases into the lowest point (gradually slows down).
Definition: Pushing an action, pose, or expression beyond realistic limits to make it more expressive, dynamic, and clear to the audience.
Usage: Exaggeration is used to enhance the clarity and appeal of an animation, especially in cartoony or stylized work.
Example: In an animated comedy, a character’s eyes might pop out of their head in shock, exaggerating their reaction for comedic effect.
Definition: A traditional animation tool that breaks down the action, dialogue, and timing for each frame, guiding animators in creating synchronized animation.
Usage: The X-Sheet is used to plan and organize each frame of animation, ensuring that all elements, including audio and movement, are timed correctly.
Example: An animator uses the X-Sheet to align the lip-sync with the character’s mouth shapes, ensuring that the dialogue matches the animation frame by frame.
Definition: The most significant or farthest poses in an animation, often defining the start and end of a movement, such as the high and low points of a jump.
Usage: Extremes are used to define the boundaries of a character’s motion, making the animation more dynamic and expressive.
Example: In a jump, the extremes are the crouching pose before the jump and the peak of the jump before the character starts descending.
Definition: Quick, small eye movements that add life and subtlety to a character’s performance, making them feel more conscious and reactive.
Usage: Eye darts are used to give characters a sense of awareness and thought, often adding to the believability of the performance.
Example: A character listening attentively may have subtle eye darts as they process what they’re hearing, making them appear more engaged.
Definition: Quick, small movements within an action that can’t be animated normally, such as a shake, a small finger gesture, or an eye dart.
Usage: Eccentric actions are used to add unique details and personality to a character’s performance.
Example: When a character is nervous, their fingers might twitch slightly, an eccentric action that subtly conveys their anxiety.
Definition: A transition effect where an image gradually appears (fade in) or disappears (fade out), often used at the beginning or end of a scene to create a smooth visual transition.
Usage: Fade ins and fade outs are used to create seamless transitions between scenes, often indicating a passage of time or a change in setting.
Example: At the start of a film, a fade-in from black reveals the opening scene, creating a smooth entry into the story.
Definition: A technique where each joint in a character’s limb is animated sequentially, from the base to the extremity. In FK, moving the upper arm affects the lower arm and hand, allowing for natural arcs and motion.
Usage: FK is used when animating natural, arcing movements like waving an arm, where the motion flows from the shoulder to the fingertips.
Example: In FK, when animating a character reaching for an object, the animator rotates the shoulder, then the elbow, and finally the wrist to create the motion.
Definition: A posing mistake where the eyes are positioned too far apart, resulting in an unnatural or “fish-like” look. This can be used intentionally for stylized characters but often detracts from expressiveness.
Usage: Avoiding fish eyes in posing is crucial for maintaining the character’s appeal and expressiveness.
Example: Adjusting the character’s eyes to be closer together can help achieve a more natural and appealing look, avoiding the fish eyes effect.
Definition: Describes animation that lacks weight or proper timing, often resulting in a character or object appearing to drift or hover unnaturally.
Usage: Floatiness is avoided by adjusting timing, spacing, and adding weight to movements to create a more grounded and believable animation.
Example: A floaty walk cycle can be corrected by adding more contact with the ground and adjusting the timing of the steps.
Definition: The graphical representation of motion and attributes in the graph editor, allowing animators to adjust the timing and spacing of an animation.
Usage: Function curves are used to fine-tune the motion of an animation, giving the animator control over how movements accelerate, decelerate, and flow.
Example: In the Graph Editor, an animator can adjust the function curve of a character’s arm movement to create a smoother ease-in and ease-out.
Definition: The continuation of motion in an animated object or character after the main action has been completed. It adds realism and weight by showing how different parts of the body or object react to the primary action.
Usage: Follow-through is used to create more natural movements, where different parts of a character or object continue moving even after the main action has stopped.
Example: When a character stops running, their hair and clothing continue to move forward slightly before settling, demonstrating follow-through.
Definition: The characteristic way an animal or character walks or moves, influenced by factors like stride length, rhythm, and footfall pattern.
Usage: Understanding gait is crucial for animating realistic and varied walks or runs for characters and creatures.
Example: A cat’s gait is different from a human’s, with a more fluid and precise placement of paws, requiring careful observation and reference when animating.
Definition: Also known as onion-skinning, a visualization tool that displays multiple frames of an animation sequence at once, helping animators see how the motion evolves over time.
Usage: Ghosting is used to plan and refine the spacing and timing of an animation by providing a visual reference of the movement’s trajectory.
Example: When animating a bouncing ball, ghosting shows the ball’s path, helping the animator adjust the spacing for a more natural arc.
Definition: A crucial tool in animation software that allows animators to manipulate animation curves, adjusting the timing, spacing, and flow of movement for each attribute.
Usage: The Graph Editor is used to fine-tune animations by editing the curves that represent an object’s transformation over time.
Example: An animator uses the Graph Editor to smooth out a character’s arm movement, adjusting the curves to create a more natural ease-in and ease-out.
Definition: A situation in 3D animation where the rotation of an object becomes limited due to overlapping rotation axes, resulting in unpredictable motion.
Usage: Gimbal lock is avoided by using techniques like quaternion rotation to maintain smooth and accurate control over an object’s orientation.
Example: When animating a character’s arm, the animator might encounter gimbal lock if the rotation axes align in a way that restricts further movement, requiring adjustments to the rig or animation technique.
Definition: The visual interface in animation software that allows users to interact with the program through graphical elements like icons, buttons, and menus.
Usage: The GUI is used to simplify the animation process, providing animators with intuitive tools and controls for creating and editing animations.
Example: Maya’s GUI includes panels, toolbars, and the Graph Editor, giving animators access to various functions for manipulating character rigs and animation curves.
Definition: A key pose that defines the narrative or emotional significance of a scene, often serving as a turning point in the animation.
Usage: Golden poses are used to emphasize crucial moments in a performance, helping to convey the character’s intent and the story’s direction.
Example: In a fight scene, the golden pose might be the moment the hero pulls back their arm to deliver a final, decisive blow.
Definition: A period during which a character or object remains still, often used to emphasize a pose or create anticipation. In advanced animation, holds are typically “moving holds,” where slight movements keep the character from appearing lifeless.
Usage: Holds are used to give the audience time to absorb a pose or action, creating emphasis and building anticipation.
Example: After a character delivers a punch, they hold the pose with clenched fists and a determined expression, giving the moment more impact.
Definition: The continuity between different shots in a film, ensuring that actions, positions, and elements match across scenes to maintain the illusion of a continuous sequence.
Usage: Hook-up is used to ensure that the audience does not notice discrepancies in the animation, preserving the narrative flow.
Example: If a character drops an object in one shot, the object should be on the ground in the same position in the next shot to maintain hook-up.
Definition: Areas in an animation where the motion is uneven or jerky due to inconsistencies in spacing or keyframe placement.
Usage: Hitches are minimized during the refinement phase by adjusting curves and ensuring smooth transitions between keyframes.
Example: An animator notices a hitch in the character’s arm movement during a wave and adjusts the spacing to create a more fluid motion.
Definition: The organized structure of elements in a character rig or scene, defining how different parts are parented and how they influence one another.
Usage: Understanding hierarchy is crucial for controlling complex rigs, ensuring that movements are correctly propagated through the character’s body.
Example: In a character rig, the hand is a child of the forearm, which is a child of the upper arm, allowing the arm to move naturally when animated.
Definition: A technique where the end effector (e.g., hand or foot) is positioned directly, and the joints leading up to it are calculated automatically to achieve the desired pose. IK is commonly used for animating limbs that need to stay planted or follow a specific path.
Usage: IK is used when a character’s hand or foot needs to remain in a specific place, such as a hand on a table or a foot on the ground.
Example: In a character animation, IK is used to keep the character’s feet planted firmly on the ground during a squat, even as the hips and upper body move.
Definition: The process of creating the intermediate frames between two keyframes to smooth the transition and make the movement appear more fluid. In 3D animation, the software automatically generates these in-betweens based on the animator’s adjustments.
Usage: Tweening is used to add fluidity to an animation, ensuring that transitions between key poses are smooth and natural.
Example: In a 2D animation, in-betweens are drawn between the key poses of a character’s jump to create a seamless motion from crouch to mid-air.
Definition: The computer’s process of calculating the values between keyframes to create smooth transitions. Various types of interpolation include linear, spline, and stepped.
Usage: Interpolation is used to control how an animation moves from one keyframe to another, affecting the smoothness and speed of the motion.
Example: An animator uses spline interpolation to create a smooth and natural arm swing in a character’s walk cycle.
Definition: Integer frames are whole-numbered frames (e.g., frame 10, 14), while non-integer frames occur between true frames (e.g., frame 10.4, 14.1). Animators usually work with integer frames to avoid timing complications.
Usage: Working with integer frames ensures precise control over timing and synchronization in animation.
Example: Key poses are usually placed on integer frames to maintain a clear structure and timing throughout the animation.
Definition: An unwanted visual disturbance in animation, often occurring when frames are held for too long or when movements are too erratic. Jitter can be minimized by adjusting timing, spacing, and contrast in the motion.
Usage: Jitter is avoided by carefully planning movements and ensuring that transitions between keyframes are smooth.
Example: An animator notices jitter in the character’s head movement and refines the curves in the Graph Editor to create a smoother path.
Definition: In 3D animation, a component of a character rig that allows for movement and articulation. Joints are connected to form a skeleton, which drives the deformation of the character’s mesh.
Usage: Joints are used to create a skeleton that animators can manipulate to pose and animate characters.
Example: In a character rig, the shoulder joint controls the rotation and movement of the upper arm.
Definition: A frame that defines the starting or ending point of any action in animation. Keyframes are crucial for outlining the motion, timing, and pose of a character or object.
Usage: Keyframes are used to establish the major poses and timing of an animation, serving as the foundation for the entire sequence.
Example: In animating a jump, keyframes are set for the crouch, the peak of the jump, and the landing.
Definition: In the graph editor, a point (keyframe) on the animation curve where adjustments can be made to control the movement between frames.
Usage: Knots are used to refine the motion by adjusting the curves that dictate how an animation moves from one point to another.
Example: An animator adjusts the knots in the Graph Editor to smooth out the character’s arm swing, ensuring a natural flow.
Definition: Sudden and unnatural snaps in the knee joint due to incorrect spacing or IK/FK switching, causing a “popping” effect in the animation.
Usage: Knee pops are avoided by carefully adjusting the animation curves and ensuring smooth transitions in the joint movements.
Example: An animator notices a knee pop in a walk cycle and adjusts the IK controls to create a smoother bending motion.
Definition: An essential pose in an animation sequence that captures the essence of the action or emotion. Key poses are used to convey the primary storytelling beats of the scene.
Usage: Key poses are used to outline the main actions and emotions in a scene, serving as the visual landmarks of the animation.
Example: In an animation of a character lifting a heavy object, the key poses include the initial crouch, the lift, and the final hold above the head.
Definition: An animation technique where the primary motion is created first on a base layer, followed by additional layers for secondary actions, fine-tuning, and details. This approach allows animators to control and modify different aspects of the animation independently.
Usage: Layered workflow is used to add complexity to animations by separately animating primary actions and secondary details.
Example: In a character animation, the base layer may contain the body movement, while separate layers add facial expressions and hand gestures.
Definition: The imaginary line that runs through a character’s pose, indicating the direction and flow of the action. A strong line of action gives the pose energy, clarity, and dynamism.
Usage: The line of action is used to create dynamic and expressive poses, helping the character’s movements convey intent and emotion.
Example: A superhero leaping into action has a strong, curved line of action that extends from the head to the toes, emphasizing the dynamic movement.
Definition: A seamless repetition of an animation cycle, such as a walk cycle, where the final frame connects smoothly back to the first frame.
Usage: Loops are used to create continuous, repetitive actions like walking, running, or background elements.
Example: A looping animation of a character tapping their foot creates the impression of continuous impatience.
Definition: An invisible object in 3D animation used as a reference point for tracking positions, paths, and constraints.
Usage: Locators are used to mark positions or paths in a scene, serving as reference points for animators.
Example: A locator is placed at a character’s hand to define the path it follows while reaching for an object.
Definition: The synchronization of a character’s lip movements with the dialogue or sound, achieved by matching phoneme shapes to the audio.
Usage: Lip sync is used to create realistic and expressive dialogue, making the character appear to be speaking naturally.
Example: An animator creates lip sync by matching the character’s mouth shapes to the sound of each syllable in the dialogue track.
Definition: A reference guide for animators, showing the design, structure, poses, and expressions of a character. Model sheets ensure consistency in character design throughout the animation process.
Usage: Model sheets are used to maintain consistency in a character’s appearance and proportions across different scenes and animators.
Example: A model sheet for a cartoon character includes front, side, and back views, along with key expressions and poses.
Definition: The visual effect of blurring objects during movement, simulating the natural blurring that occurs when objects move quickly. Motion blur adds realism to fast-moving scenes.
Usage: Motion blur is used to enhance the sense of speed and movement, making animations appear more dynamic and natural.
Example: In a high-speed chase scene, motion blur is applied to the moving vehicles to emphasize their speed.
Definition: A technique that records the movements of a live actor using sensors or markers and transfers this data to a digital character for realistic animation.
Usage: MoCap is used to capture complex, realistic movements that would be difficult or time-consuming to animate by hand.
Example: In a video game, MoCap is used to record the actor’s movements during a fight scene, providing a realistic base for the character’s animations.
Definition: A technique used to keep a character looking alive while holding a pose by adding subtle movements like breathing or blinking.
Usage: Moving holds are used to prevent a character from appearing frozen or lifeless during a hold, adding slight motion to maintain believability.
Example: While holding a heroic pose, the character’s chest subtly rises and falls to simulate breathing.
Definition: The force that keeps an object or character moving once it has started, influencing how it accelerates, decelerates, and changes direction.
Usage: Momentum is used to create realistic movements by considering how weight and speed affect an object’s motion.
Example: When a character stops running, their body leans forward due to momentum, and their arms swing slightly to counterbalance.
Definition: A trajectory or path along which an animated object or character moves, defining the direction, speed, and curve of the motion.
Usage: Motion paths are used to control the movement of objects and characters, ensuring they follow a specific route.
Example: A bird flying in an arc follows a motion path that defines the curve of its flight.
Definition: Unwanted or random fluctuations in an animation that create erratic or jittery movement. Noise can be introduced during motion capture or hand-keyed animation and is often minimized during the refinement phase.
Usage: Noise is reduced to create smooth and intentional motion, making the animation appear more polished and controlled.
Example: An animator uses the Graph Editor to remove noise in a character’s head movement, creating a cleaner and more fluid motion.
Definition: The empty space around and between objects or characters in a scene. Proper use of negative space enhances the readability and composition of a pose or action.
Usage: Negative space is used to draw attention to the main elements of a scene and create a balanced composition.
Example: In a dramatic close-up, negative space around the character’s face emphasizes their expression and emotional state.
Definition: The technique of staggering the timing of movements in different parts of a character to create overlapping action and avoid robotic or synchronized motion.
Usage: Offsetting is used to add fluidity and naturalness to movements, making them appear more dynamic and less mechanical.
Example: In a character’s walk cycle, the arms are offset slightly from the legs, creating a more organic and believable motion.
Definition: An animation principle where a movement goes beyond its final position before settling back into place, adding realism and emphasizing the weight and momentum of the action.
Usage: Overshoot is used to add emphasis and realism to actions, making them appear more dynamic and natural.
Example: When a character swings a bat, the bat overshoots the final position slightly before settling, indicating the force of the swing.
Definition: The principle that different parts of a character’s body will move at different rates, creating a more fluid and dynamic motion. For example, when a character turns their head, the hair may continue to move after the head has stopped.
Usage: Overlapping action is used to create more natural and lifelike movements by showing how different parts of the body react to the main action.
Example: When a character stops running, their clothes and hair continue to move slightly, demonstrating overlapping action.
Definition: An animation technique where key poses are planned and created first, and the in-between frames are added later. This approach provides control over the overall timing and structure of the animation.
Usage: Pose-to-pose is used to plan out the major actions and emotions in a scene, allowing for a more structured and controlled animation process.
Example: In animating a character lifting an object, the key poses include the crouch, the grab, and the lift, with in-betweens added later.
Definition: A temporary object or model used in a scene when the final asset is not yet available. Placeholders help animators block out scenes and test interactions.
Usage: Placeholders are used to maintain timing and spatial relationships in a scene during the early stages of animation.
Example: A simple cube is used as a placeholder for a prop that will be replaced with a detailed model in the final animation.
Definition: The process of dividing an action or performance into distinct, manageable beats or “phrases,” each conveying a specific aspect of the story or emotion.
Usage: Phrasing is used to break down complex actions into clear and understandable segments, enhancing the clarity of the performance.
Example: A character’s reaction to a surprise is phrased into distinct beats: the initial shock, the realization, and the final response.
Definition: The core of a character where the origin of movement is perceived, often used to convey weight, balance, and intention.
Usage: The power center is used to direct the character’s movements, ensuring they appear grounded and intentional.
Example: A character’s power center might shift to their chest when they lead with confidence, or to their hips when they are relaxed.
Definition: A simplified, low-resolution version of a model or scene used to improve performance during the animation process.
Usage: Proxies are used to speed up the animation process by reducing the computational load, allowing for smoother playback and editing.
Example: A low-polygon version of a character is used as a proxy during animation, ensuring real-time feedback while animating complex scenes.
Definition: A character or creature with four legs, such as a horse or dog. Quadruped animation involves understanding the unique mechanics and gaits of four-legged locomotion.
Usage: Quadruped animation requires knowledge of animal movement patterns, such as walking, trotting, and galloping.
Example: When animating a quadruped like a horse, the animator studies the timing and placement of the legs to create a realistic walk cycle.
Definition: The underlying structure of a character that consists of bones, controls, and constraints, allowing animators to pose and animate the character.
Usage: A rig is used to give animators the tools to move and pose characters in a controlled and realistic manner.
Example: A character rig includes controls for the head, arms, legs, and facial expressions, enabling the animator to create complex movements and performances.
Definition: A technique in which live-action footage is traced frame-by-frame to create realistic animation. It can be used as a reference or directly as the animation.
Usage: Rotoscoping is used to achieve realistic motion by using live-action footage as a guide for the animation.
Example: In a dance sequence, the animator rotoscopes the footage of a dancer to accurately capture the fluid movements in the animation.
Definition: The pattern and flow of movements within an animation, creating a sense of timing, pace, and contrast. Rhythm can influence the overall feel and impact of a performance.
Usage: Rhythm is used to guide the pacing of an animation, ensuring that movements have a natural flow and balance.
Example: A character’s performance is enhanced by the rhythm of their actions, such as the steady beat of a march or the erratic movements of a chase.
Definition: A looped animation sequence depicting the running motion of a character. It typically consists of key poses like contact, passing, and push-off positions.
Usage: Run cycles are used to create a continuous running motion for characters, ensuring smooth transitions between each step.
Example: In a video game, the character’s run cycle is looped to create the appearance of constant running when the player moves the character forward.
Definition: A guideline in animation and film production that indicates the region of the screen where the main action should occur, ensuring that important elements are visible on all display devices.
Usage: Safe areas are used to ensure that critical content remains visible, regardless of the display format or device.
Example: When animating for television, animators keep key elements like characters and text within the safe action area to prevent them from being cut off on different screens.
Definition: The arrangement and composition of characters, objects, and camera angles in a scene to create a clear and visually engaging presentation of the action.
Usage: Staging is used to direct the audience’s attention to the most important elements of a scene, enhancing the storytelling and emotional impact.
Example: In a scene where a character is hiding, the staging places them in shadow while the antagonist is highlighted, creating tension and focus.
Definition: An animation technique where frames are created in a sequential order from start to finish, allowing for spontaneous and fluid motion but with less control over the overall timing and structure.
Usage: Straight-ahead animation is used for dynamic and unpredictable movements, like fire, smoke, or fluid actions.
Example: When animating a character’s hair blowing in the wind, straight-ahead animation allows for a more organic and spontaneous flow of movement.
Definition: The gradual decrease of movement after an action has been completed, allowing the character or object to come to a natural rest. A well-executed settle adds realism and weight to the animation.
Usage: Settles are used to give weight and finality to actions, making them feel more believable and grounded.
Example: After a character jumps and lands, their body settles with a slight bounce and sway, indicating the impact and absorption of the motion.
Definition: An animation style characterized by quick, sharp transitions between poses, creating an energetic and exaggerated movement. It involves strong contrasts between slow and fast movements.
Usage: Snappy animation is used in stylized or cartoony animations to create dynamic and exaggerated actions.
Example: In a comedy cartoon, a character’s head snaps quickly to the side in surprise, creating a humorous and exaggerated effect.
Definition: The underlying meaning or emotion behind a character’s actions or dialogue, often revealed through subtle cues in their performance.
Usage: Subtext is used to convey a character’s true feelings or intentions without explicitly stating them, adding depth to the performance.
Example: A character may smile while clenching their fist, indicating anger beneath their calm exterior.
Definition: A term used to describe symmetrical poses or movements, where both sides of a character mirror each other, often resulting in a stiff or unnatural appearance.
Usage: Twinning is usually avoided to create more dynamic and lifelike poses, adding asymmetry to make movements feel more organic.
Example: Instead of both arms moving up simultaneously, the animator offsets one arm slightly to break the twinning and create a more natural gesture.
Definition: The control of the speed and rhythm of an animation, determining how fast or slow an action occurs. Good timing is essential for conveying weight, emotion, and intention.
Usage: Timing is used to control the pacing of an animation, affecting the mood, believability, and impact of the action.
Example: A slow, deliberate blink conveys thoughtfulness, while a quick, sharp blink can indicate surprise or irritation.
Definition: The path that a moving object follows through space, influenced by factors like gravity, force, and momentum.
Usage: Trajectory is used to guide the motion of objects and characters, ensuring that movements follow a natural and believable path.
Example: When animating a character throwing a ball, the trajectory shows the arc of the ball’s flight, influenced by the force of the throw and gravity.
Definition: The subtle variations and extra details added to an animation, such as residual motion, secondary action, and small adjustments, that enhance the realism and visual interest.
Usage: Texture is used to add richness and complexity to an animation, making it more engaging and lifelike.
Example: A character brushing their hair might have texture in the form of small hand movements, subtle shifts in posture, and the hair’s natural sway.
Definition: Small, quick sketches used in the planning stage of animation to visualize and test different poses, compositions, and actions before committing to a full animation.
Usage: Thumbnails are used to explore and refine ideas quickly, helping animators plan the action and composition of a scene.
Example: An animator creates a series of thumbnails to brainstorm different poses for a character’s jump, experimenting with various angles and expressions.
Definition: Refers to the direction and shape of an arc in animation. An under-arc is U-shaped, while an over-arc is n-shaped. The choice of arc affects the intensity and emotion of the movement.
Usage: Arcs are used to guide the motion of objects and characters, ensuring that movements follow natural, curved paths.
Example: When a character swings a sword, the motion of the blade follows an over-arc to convey the force and speed of the strike.
Definition: A visual representation of a phoneme, showing the shape of the mouth and lips during speech. Visemes are used in lip-sync animation to create accurate mouth movements for dialogue.
Usage: Visemes are used to match the character’s lip movements with spoken dialogue, enhancing the believability of the performance.
Example: For the sound “O,” the animator adjusts the character’s mouth shape to match the corresponding viseme, creating a realistic lip sync.
Definition: The perceived mass or size of a character or object. Maintaining consistent volume is crucial, especially in squash and stretch animation, to avoid visual distortions.
Usage: Volume is used to maintain the believability of objects and characters, ensuring they appear consistent and solid throughout the animation.
Example: In a squash and stretch animation, the character’s volume remains constant, even as their body squashes down or stretches out.
Definition: A looped animation sequence that depicts the walking motion of a character. A standard walk cycle includes key poses like contact, passing, and up and down positions.
Usage: Walk cycles are used to create a continuous walking motion for characters, ensuring that each step flows naturally into the next.
Example: An animator creates a walk cycle for a character by keyframing the contact, passing, up, and down positions to depict a fluid walking motion.
Definition: The impression of mass and gravity in an animation, making a character or object feel grounded and realistic. Proper weight distribution and timing are crucial for believable motion.
Usage: Weight is used to make characters and objects feel solid and influenced by gravity, creating a more lifelike animation.
Example: When a character lifts a heavy object, the animation shows the effort through slow, deliberate movements and the bending of the character’s legs under the weight.
Definition: The transfer of a character’s weight from one supporting limb to another, such as shifting from one foot to the other during a walk.
Usage: Weight shifts are used to create realistic and dynamic poses, showing how a character balances and moves.
Example: In a character’s walk cycle, the weight shifts from the back foot to the front foot as the character steps forward.
Definition: The structured process and methodologies animators use to create their work more effectively and ergonomically.
Usage: Workflow is used to optimize the animation process, ensuring a smooth and efficient production pipeline.
Example: An animator follows a workflow that includes stages like blocking, splining, and polishing to create a finished animation.
Definition: Short for “exposure sheet,” a tool used in traditional animation to plan and time the sequence of frames, dialogue, and actions, guiding the animator frame-by-frame.
Usage: The X-Sheet is used to organize and time each element of an animation, ensuring that movements, dialogue, and effects are synchronized.
Example: An animator uses the X-Sheet to plan the timing of a character’s mouth shapes for accurate lip sync with the dialogue.
Definition: One of the three rotational axes in 3D animation, representing the horizontal rotation of an object around the vertical axis.
Usage: Yaw is used to control the rotation of an object or character, affecting how they turn left or right.
Example: When animating a car turning a corner, the yaw rotation is adjusted to steer the car in the desired direction.
Definition: Resetting the values of an attribute in the channel box or graph editor to their default or neutral position, often used to fix problematic poses or return to a base state.
Usage: Zeroing out is used to reset parts of a character’s rig, ensuring a clean starting point for new animations or corrections.
Example: An animator zeros out the rotation values of a character’s arm to return it to the neutral pose before animating a new action.
